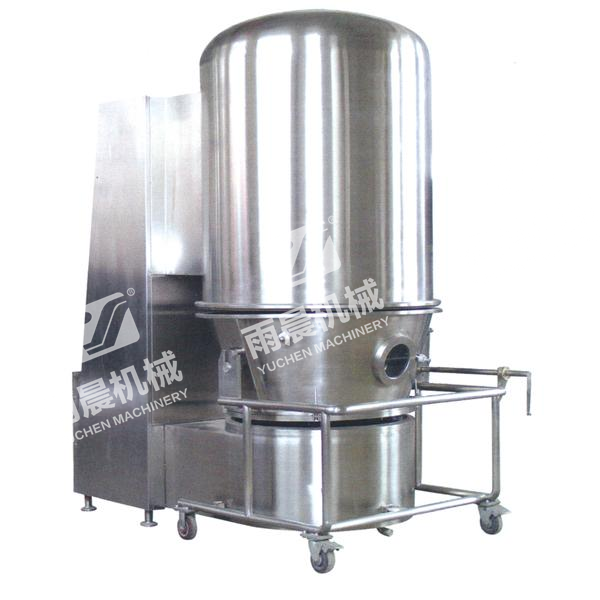

This machine is suitable for drying granular materials in industries such as pharmaceuticals, chemicals, and food. It is also suitable for drying powdered and viscous materials, as well as thermosensitive materials, and has multiple drying functions.
Principle and characteristics
Using hot air flow to suspend powdery or granular wet materials into a fluidized state, rapidly heating them, evaporating water and carrying it out with the airflow, resulting in fast drying speed and uniform temperature. The dryer material cylinder adopts a cylinder for lifting, which has a simple structure, convenient operation, and reliable sealing.
The material barrel is equipped with a stirrer and a special air distribution plate to prevent dead corners in the bed. The use of bottom plate flipping for discharge makes it extremely convenient and fast for the discharge or cleaning of the material barrel.

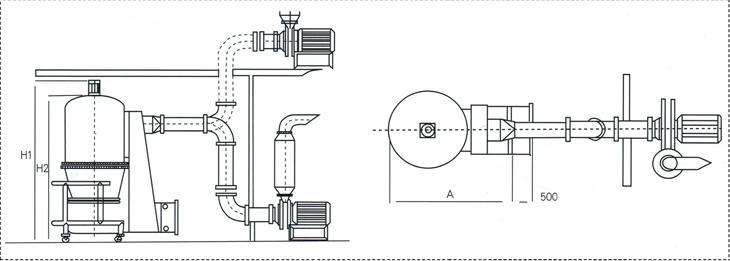

Installation reference diagram
Main technical parameters
model
GFG-60
GFG-100
GFG-120
GFG-150
GFG-200
GFG-300
GFG-500
Hopper volume (L)
200
300
400
500
650
1000
1500
Production capacity (kg/batch)
30-60
50-100
60-120
70-150
100-200
150-300
200-500
Air inlet temperature (° C)
50-100
Fan
Air volume (m '/h)
2576
3488
3619
5114
6032
7766
10800
wind pressure(pa)
5639
5080
7109
5869
7610
9500
9500
power(kw)
7.5
11
15
18.5
22
30
45
Mixer
speed(r/min)
11
11
11
11
11
11
11
electrical machinery(kw)
0.75
1.1
1.1
1.1
1.1
1.1
1.5
Steam consumption(kg/h)
140
170
210
240
280
366
451
Host weight(kg)
1000
1200
1450
1500
1700
2200
2800
Host height(mm)
2700
2900
2900
2900
3300
3800
4200
